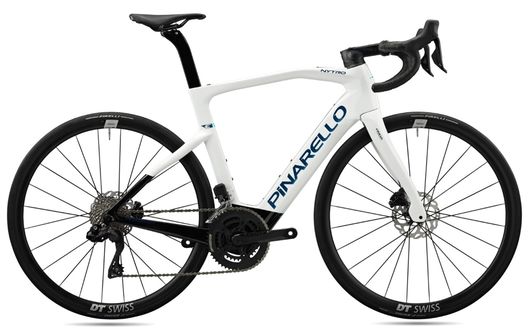

Pinarello Nytro E5 105 Di2 Disc E-Road Bike

Checkout Today, Spread the Cost
From £120.04 per month on finance
  • Brand:Pinarello
  • Battery Type:TQ-HPR50Drive Unit; 360 Wh Integrated Battery
  • Battery:Rechargeable
  • Bottom Bracket:Included with Drive Unit
  • Brake Levers:Shimano 105 Di2 7170
  • Cassette:Shimano 105 7100 12-speed 11-34
  • Chain:Shimano M7100 12-speed
  • Chainset:MOST Alloy Compact 50/34t
  • Colour:Brilliant Black
  • Fork:Nytro ONDA carbon fork with forkflap, tapered head tube
  • Frame:TorayCa T700 UD, TiCR™ cable routing, Italian BB
  • Front Brake:Shimano 105 7170 Hydraulic Disc
  • Front Derailleur:Shimano 105 Di2 7150
  • Front Tyre:Pirelli P7 28mm
  • Handlebars:MOST Jaguar XA Aero TiCR
  • Rear Tyre:Pirelli P7 28mm
  • Rims:Fulcrum Racing 800
  • Saddle:MOST Lynx Aircross
  • Shifter Type:Electronic
  • Model Year:2024
  • Rear Brake:Shimano 105 7170 Hydraulic Disc
  • Rear Derailleur:Shimano 105 Di2 7150

In Store Collection Only

Pinarello Nytro E5 105 Di2 Disc E-Road Bike

No compromises! The Nytro E performs exactly like a traditional top-of-the-range bike.The choice of materials, geometry, and technical innovations used to create the new
Nytro E combine to create a level of reactivity and ride feel that’s very close to our
other models.
Pinarello is proud to have 70 years of experience in creating the most successful racing
bikes on the market, and all of our know-how has been applied to these new models
which have truly unique driveability and road feel.

Ride fast everywhere in the most natural and silent way possible thanks to the new TQ-HPR50 motor. Offering a true pedalling experience, the feedback from your exertions
is extraordinarily similar to a mechanical bicycle, just with 300W more in your legs.

The new Nytro E-line opens up a world of possibilities to experiencecycling! This range is designed for all cyclists looking to enjoy the emotions of cycling.It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike



Due to their precision, durability and compact design, harmonic pin ring transmissions and specifically TQ harmonic pin ring drives, have been used in the space industry, aviation, the medical industry and robotics. For all the same reasons they succeed in moon landers and surgery robots, they work brilliantly in e-bikes as well.


Tipping the scale at just 1,800 g, the HPR50 is 1,100-grams lighter than other high-powered drive systems.


HPR50 tucks neatly behind the front chainring for the clean look of a traditional bike.


Foregoing noisy belts and geared teeth, the HPR50 comes in as much quieter than other systems.


The small size of HPR50 allows for a minimal 135 mm Q-factor (the distance between the outside of one crank and the outside of the opposite crank), providing a comfortable riding position similar to a non-electric bike.


A balanced 50 Nm of torque gives just the right amount of assist that isn’t overwhelming, and doesn’t jerk you around like a full-powered 85-90 Nm e-bike. HPR-50 as a package is rather lightweight for a mid-drive system, at 1850 g for the motor and 3900 g, including the 360 Wh battery and 2” display integrated into the top tube. Max assistance is available courtesy of four different assist levels, with the motor offering up to 50 Nm torque on tap and 300 W peak power.


Claimed range is up to 100 km (62 miles) or 140 km (87 miles) with an optional 160 Wh range extender. *TBC


  • Carbon T700 Frameset with Dedicated Road Carbon Onda fork
  • New 105 Di2 12 Speed Semi Wireless Groupset
  • Dedicated FSC Frontal seat clamp, integrated and aerodynamic
  • Think 2, to fit electronical groupsets or mechanical Shimano and SRAM groupset
  • TiCR internal cable routing
  • TiCR integrated headset ( 1.5 upper and 1.5 lower)
  • Flatback profiles
  • Fork Flap
  • Max Tire: 700c x 32 mm
  • Disc Flat Mount Ø160 mm
